589506Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 1,000 daN
728776Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 285 mm
- A×BTop plate (outside)
- 200 × 160 mm
- AA×BBBolt hole spacing
- 160 × 120 mm
- EEBolt hole diameter
- 17 mm
- ESwivel offset
- 65 mm
- OBrake swing radius
- 164 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

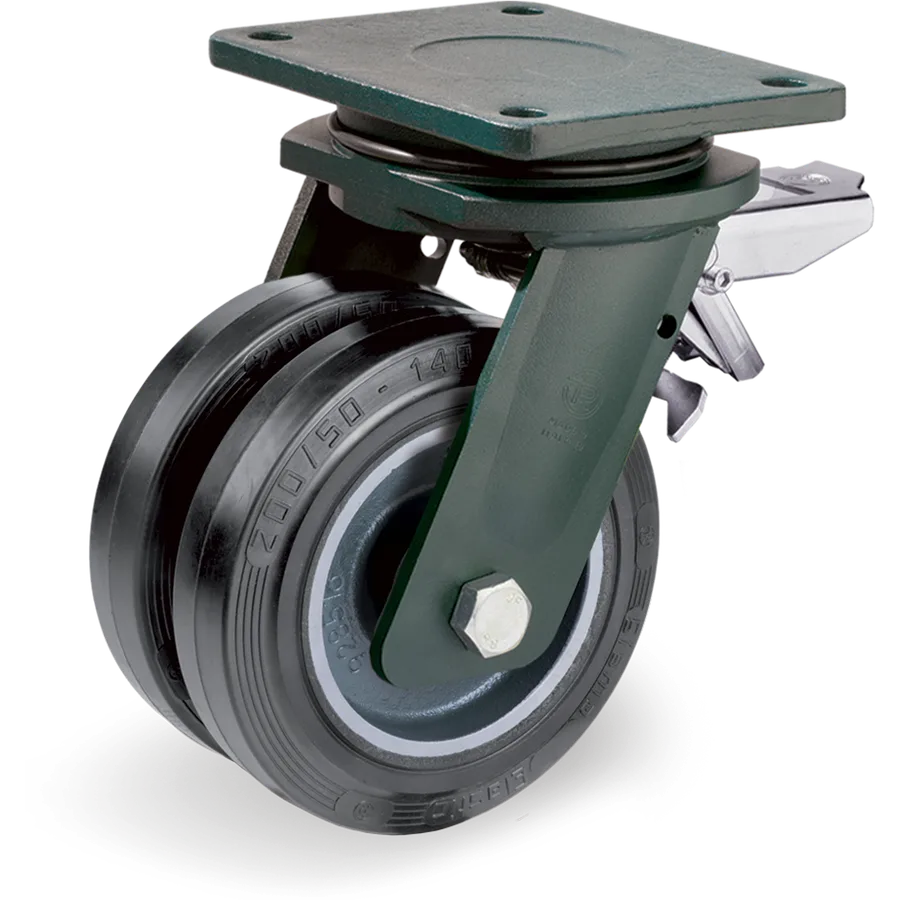

Elastic rubber swivel castor Ø200 mm with brake
Sigma Elastic rubber wheels, machined cast iron centre
Tellure description: 72GH 200X50+50 CC SRP/EEGHD+FP R4.0
- Diameter (D)
- Ø 200mm
- Load at 4 km/h
- 1,000daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 728776
- Series
- Tellure Rôta 72GH
- Tread
- Elastic rubber
- Diameter (D)
- 200 mm
- Load at 4 km/h
- 1,000 daN
- Load at 6 km/h
- 800 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 285 mm
- Top plate (A × B)
- 200 × 160 mm
- Bolt hole spacing (AA × BB)
- 160 × 120 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
