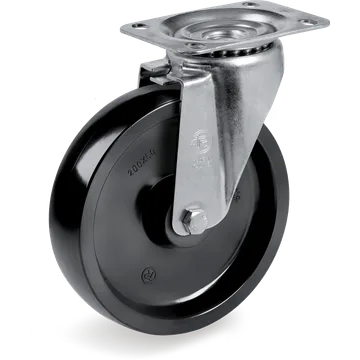

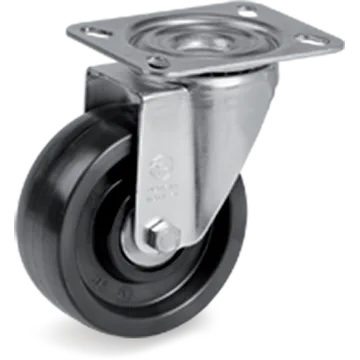

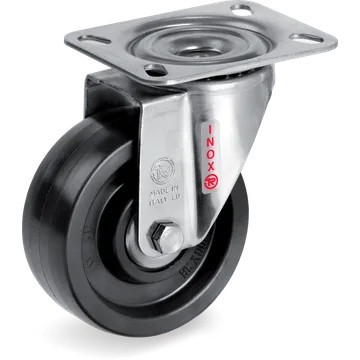

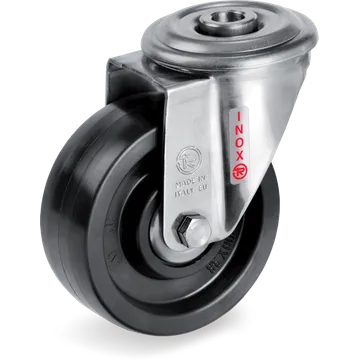

676711Series 67Thermosetting resin swivel castor Ø80×35 mm
One-piece thermosetting resin wheels for high temperatures
Load capacity: 160 daN
676111Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 35 mm
- HOverall height
- 107 mm
- GPlate diameter
- 73 mm
- GGThrough-hole diameter
- 12 mm
- ESwivel offset
- 40 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

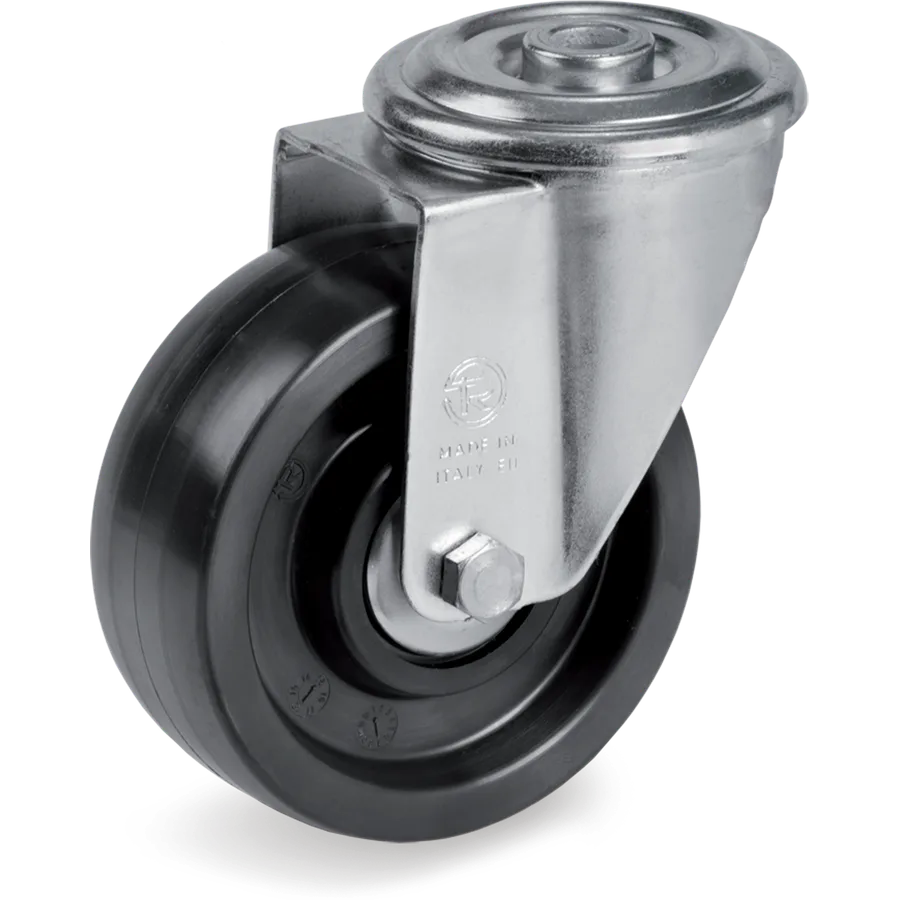

Thermosetting resin swivel castor Ø80×35 mm
One-piece thermosetting resin wheels for high temperatures
Tellure description: 67 80X35 CC SRF/NL C1
- Diameter (D)
- Ø 80mm
- Width (F)
- 35mm
- Load at 4 km/h
- 160daN
- Tread
- Thermosetting resin
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 676111
- Series
- Tellure Rôta 67
- Tread
- Thermosetting resin
- Diameter (D)
- 80 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 160 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 107 mm
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- No
