676111Series 67Thermosetting resin swivel castor Ø80×35 mm
One-piece thermosetting resin wheels for high temperatures
Load capacity: 160 daN

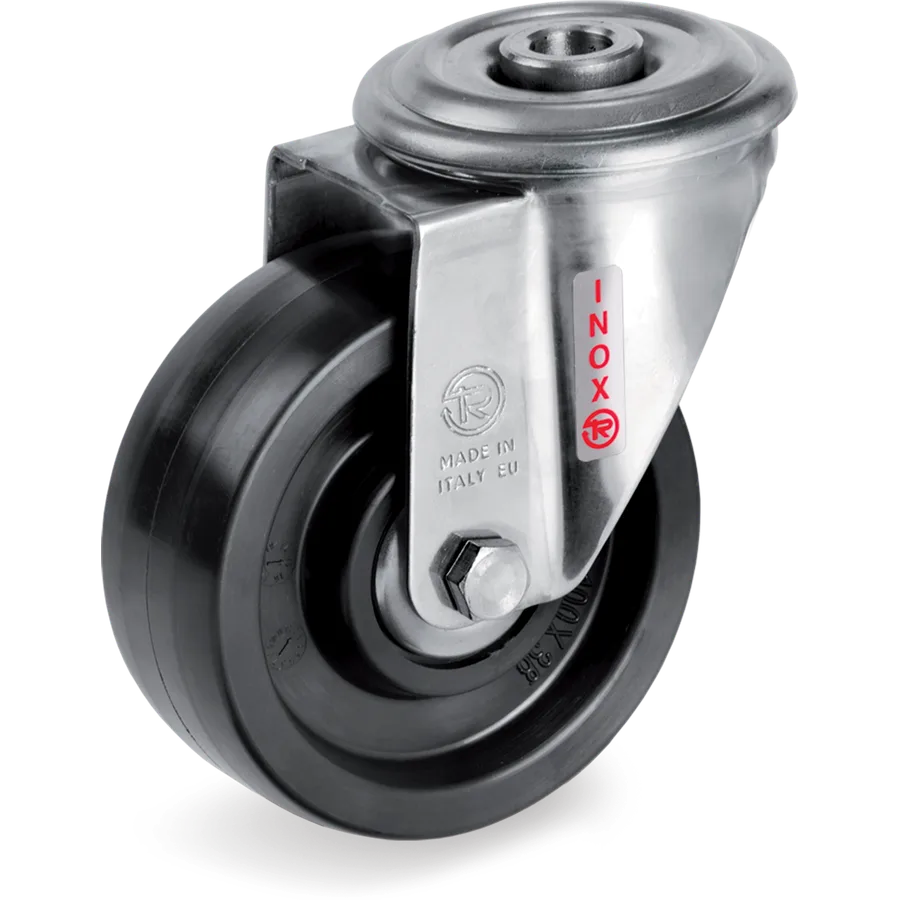

676711Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 35 mm
- HOverall height
- 107 mm
- GPlate diameter
- 73 mm
- GGThrough-hole diameter
- 12 mm
- ESwivel offset
- 40 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermosetting resin swivel castor Ø80×35 mm
One-piece thermosetting resin wheels for high temperatures
Tellure description: 67 80X35 CCX SRF/NLX C1
- Diameter (D)
- Ø 80mm
- Width (F)
- 35mm
- Load at 4 km/h
- 160daN
- Tread
- Thermosetting resin
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 676711
- Series
- Tellure Rôta 67
- Tread
- Thermosetting resin
- Diameter (D)
- 80 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 160 daN
- Bearing
- Ball bearings 1Z stainless
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 107 mm
- Fitting
- Bolt hole
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
One-piece thermosetting resin wheels for high temperatures
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 676701 | Ø80×35 mm | 150 daN | C/B | No | 67 80X35 CB SRF/NLX C1 |
| 676711 | Ø80×35 mm | 160 daN | C/CX 1Z | No | This article |
| 676702 | Ø100×35 mm | 200 daN | C/B | No | 67 100X35 CB SRF/NLX C1 |
| 676712 | Ø100×38 mm | 200 daN | C/CX 1Z | No | 67 100X38 CCX SRF/NLX C1 |
| 676703 | Ø125×35 mm | 220 daN | C/B | No | 67 125X35 CB SRF/NLX C1 |
Similar alternatives
- 676111Series 67

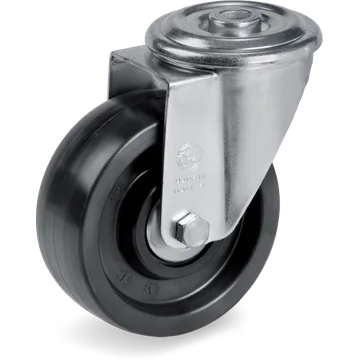

677111Series 67Thermosetting resin swivel castor Ø80×35 mm
