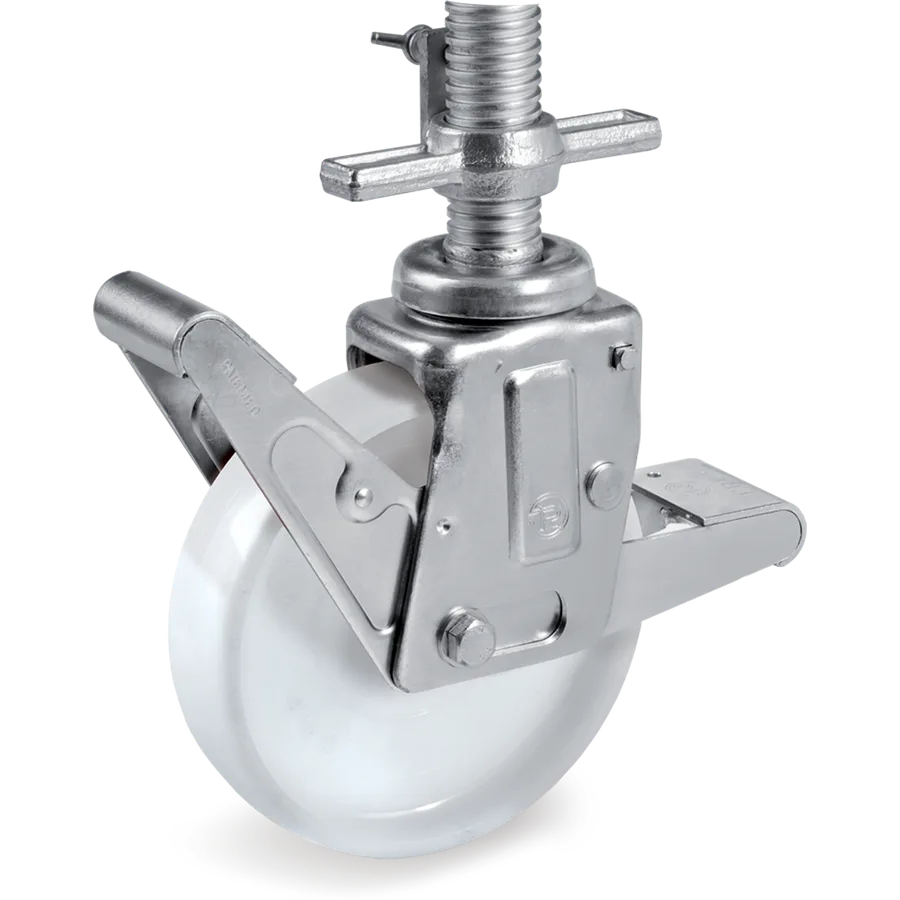

Tellure Rôta 689714 – Polyamide 6 swivel castor Ø150×45 mm with brake689714Representative image of the family

Drawing dimensions

DDiameter
150 mm
FWidth
45 mm
HOverall height
192 mm
GPlate diameter
83 mm
TThreaded stem
M38×6
FSThreaded stem length
500 mm
ESwivel offset
40 mm
OBrake swing radius
150 mm

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

Tellure RôtaCode 689714Series 68

Polyamide 6 swivel castor Ø150×45 mm with brake

One-piece polyamide 6 wheels

Tellure description: 68 150X45 CB SRC/LIVEL TRAB DP

Diameter (D)
Ø 150mm
Width (F)
45mm
Load at 4 km/h
300daN
Tread
Polyamide 6

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
689714
Series
Tellure Rôta 68
Tread
Polyamide 6
Diameter (D)
150 mm
Width (F)
45 mm
Load at 4 km/h
300 daN
Bearing
Plain bore

Bracket

Bracket type
Swivel
Overall height (H)
192 mm
Fitting
Stem
Bracket material
Galvanised steel
Brake
Yes
Brake type
Double-pedal brake

Other sizes in this family

One-piece polyamide 6 wheels

2 articles

CodeØ × FLoad capacityBearingBrakeTellure description
689714Ø150×45 mm300 daNC/BYesThis article
689716Ø200×50 mm400 daNC/BYes68 200X50 CB SRC/LIVEL TRAB DP
