687233Series 68PPolyamide 6 swivel castor Ø125×45 mm with brake
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina PX con freno registrable
Load capacity: 650 daN

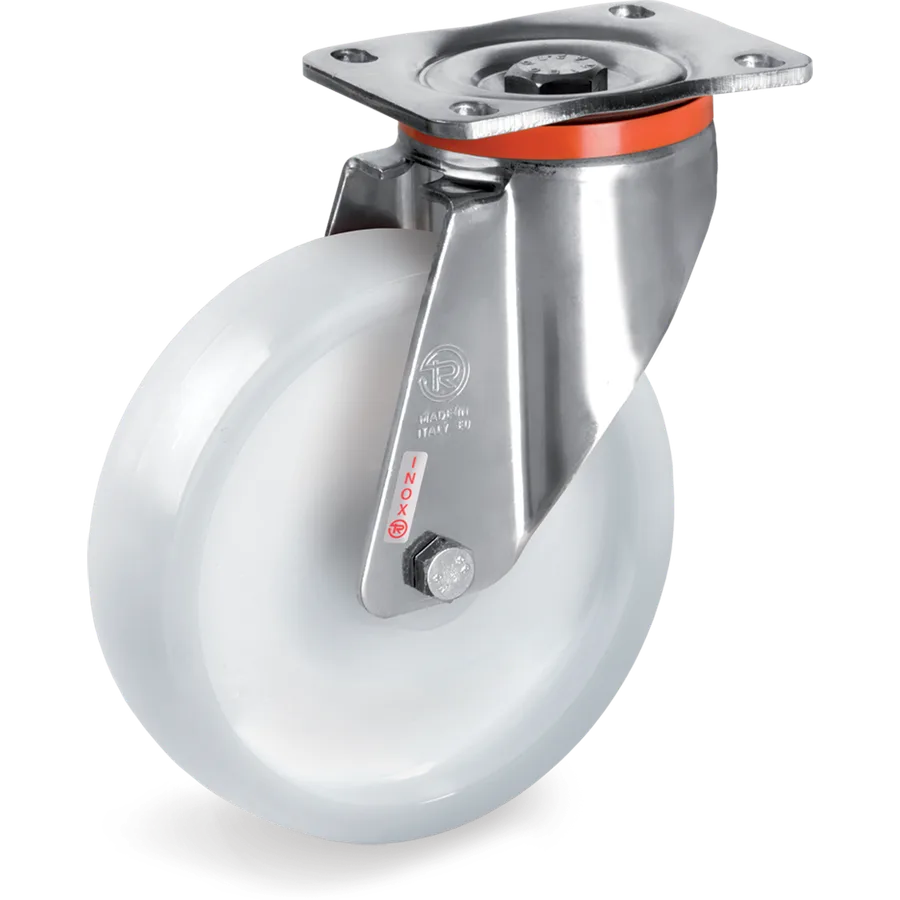

687013Representative image of the familyPolyamide 6 swivel castor Ø125×45 mm
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina PX
Tellure description: 68P 125X45 CB SRP/PX 150 R2.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 45mm
- Load at 4 km/h
- 650daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 687013
- Series
- Tellure Rôta 68P
- Tread
- Polyamide 6
- Diameter (D)
- 125 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 650 daN
- Bearing
- Plain bore
- Hub length (L)
- 58 mm
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina PX
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 685093 | Ø125×45 mm | 650 daN | C/CX 2RS | No | 68P 125X45 CCX SRP/PX R2.0 |
| 687013 | Ø125×45 mm | 650 daN | C/B | No | This article |
| 687033 | Ø125×45 mm | 650 daN | C/B | No | 68P 125X45 CB SRP/PX R2.0 |
| 685074 | Ø150×45 mm | 750 daN | C/CX 2RS | No | 68P 150X45 CCX SRP/PX R2.0 |
| 687014 | Ø150×45 mm | 750 daN | C/B | No | 68P 150X45 CB SRP/PX R2.0 |
| 685076 | Ø200×50 mm | 750 daN | C/CX 2RS | No | 68P 200X50 CCX SRP/PX R2.0 |
| 687016 | Ø200×50 mm | 750 daN | C/B | No | 68P 200X50 CB SRP/PX R2.0 |
Similar alternatives
- 687233Series 68P

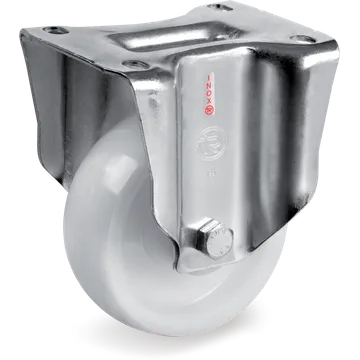

685493Series 68PPolyamide 6 fixed castor Ø125×45 mm
