627236Representative image of the family

Drawing dimensions

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

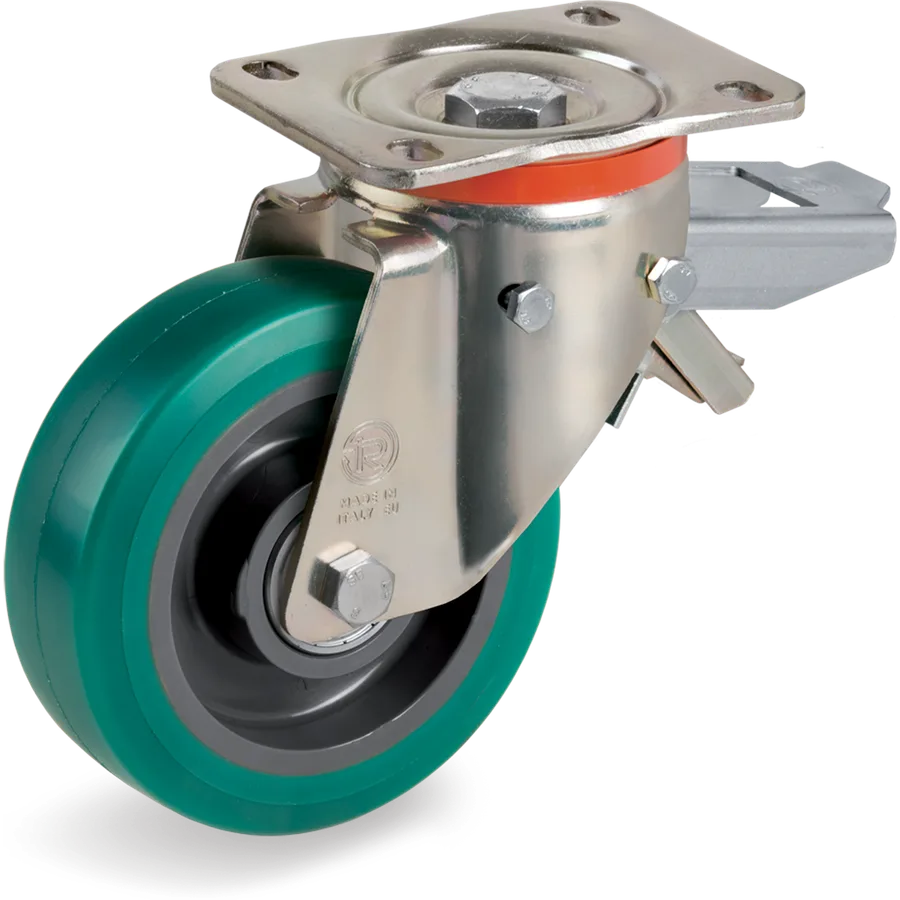

TR-Roll polyurethane swivel castor Ø200×50 mm with brake

Name: Tellure Rôta 627236 · TR-Roll polyurethane swivel castor Ø200×50 mm with brake
Brand: Tellure Rôta
SKU: 627236

TR-Roll polyurethane wheels, polyamide 6 centre

Tellure description: 62NY 200X50 CC SRP/P+FP R2.0

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Questions about this article?

Genuine Tellure Rôta product · Made in Italy

TR-Roll polyurethane wheels, polyamide 6 centre

4 articles

Code	Ø × F	Load capacity	Bearing	Brake	Tellure description
627222	Ø100×40 mm	230 daN	C/C 2Z	Yes	62NY 100X40 CC SRP/P+FA R1.0
627223	Ø125×40 mm	280 daN	C/C 2Z	Yes	62NY 125X40 CC SRP/P+FA R1.0
627234	Ø160×50 mm	400 daN	C/C 2Z	Yes	62NY 160X50 CC SRP/P+FP R2.0
627236	Ø200×50 mm	500 daN	C/C 2Z	Yes	This article

585566Series 58

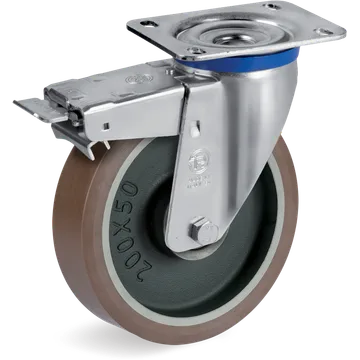

TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 500 daN
627226Series 62NYER

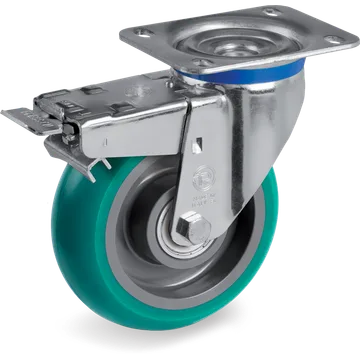

TR-Roll polyurethane swivel castor Ø200×50 mm with brake
Round-profile TR-Roll polyurethane wheels, polyamide 6 centre
Load capacity: 500 daN
627406Series 62AL

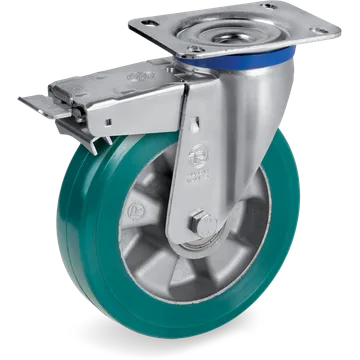

TR-Roll polyurethane swivel castor Ø200×50 mm with brake
TR-Roll polyurethane wheels, aluminium centre
Load capacity: 500 daN
627436Series 62NYER

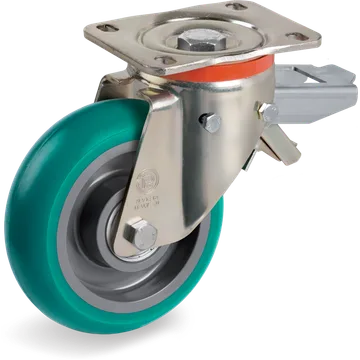

TR-Roll polyurethane swivel castor Ø200×50 mm with brake
