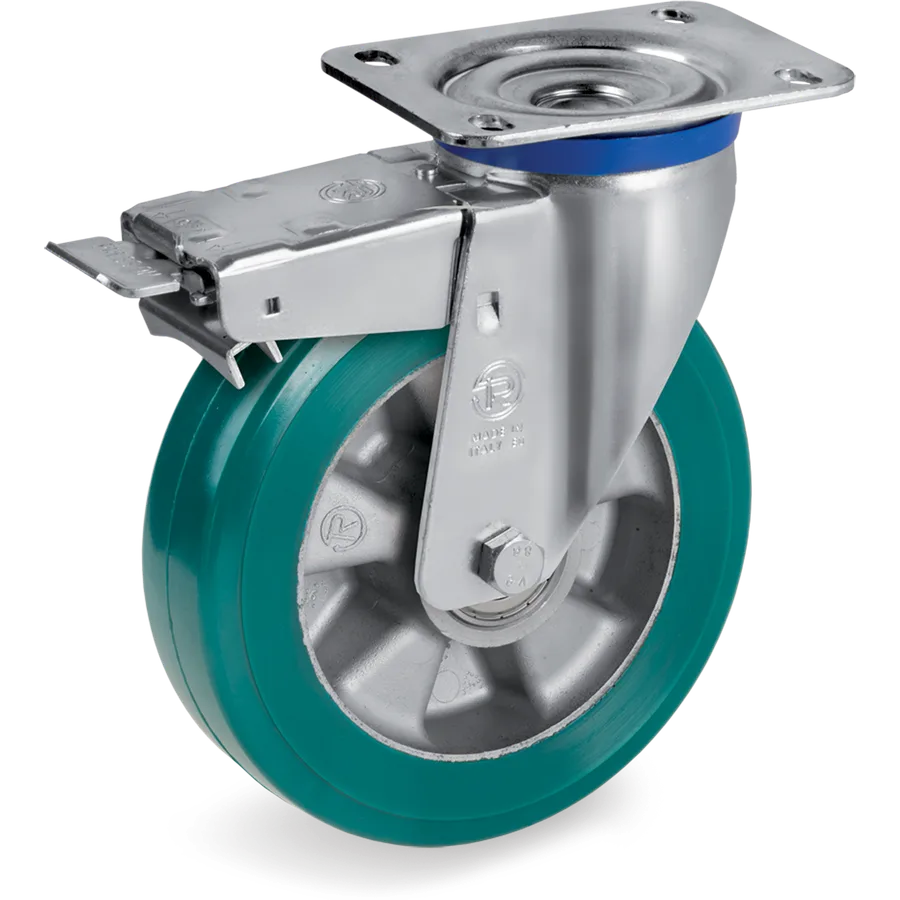

627406Representative image of the familyTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina M freno delantero
Tellure description: 62AL 200X50 CC SRP/M+FA R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 627406
- Series
- Tellure Rôta 62AL
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina M freno delantero
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 627414 | Ø150×40 mm | 450 daN | C/C 2Z | Yes | 62BS 150X40 CC SRP/M+FA R2.0 |
| 627404 | Ø160×50 mm | 500 daN | C/C 2Z | Yes | 62AL 160X50 CC SRP/M+FA R2.0 |
| 627410 | Ø160×50 mm | 500 daN | C/C 2Z | Yes | 62BS 160X50 CC SRP/M+FA R2.0 |
| 627406 | Ø200×50 mm | 500 daN | C/C 2Z | Yes | This article |
| 627416 | Ø200×50 mm | 500 daN | C/C 2Z | Yes | 62BS 200X50 CC SRP/M+FA R2.0 |
