585566Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina M freno delantero
Load capacity: 500 daN

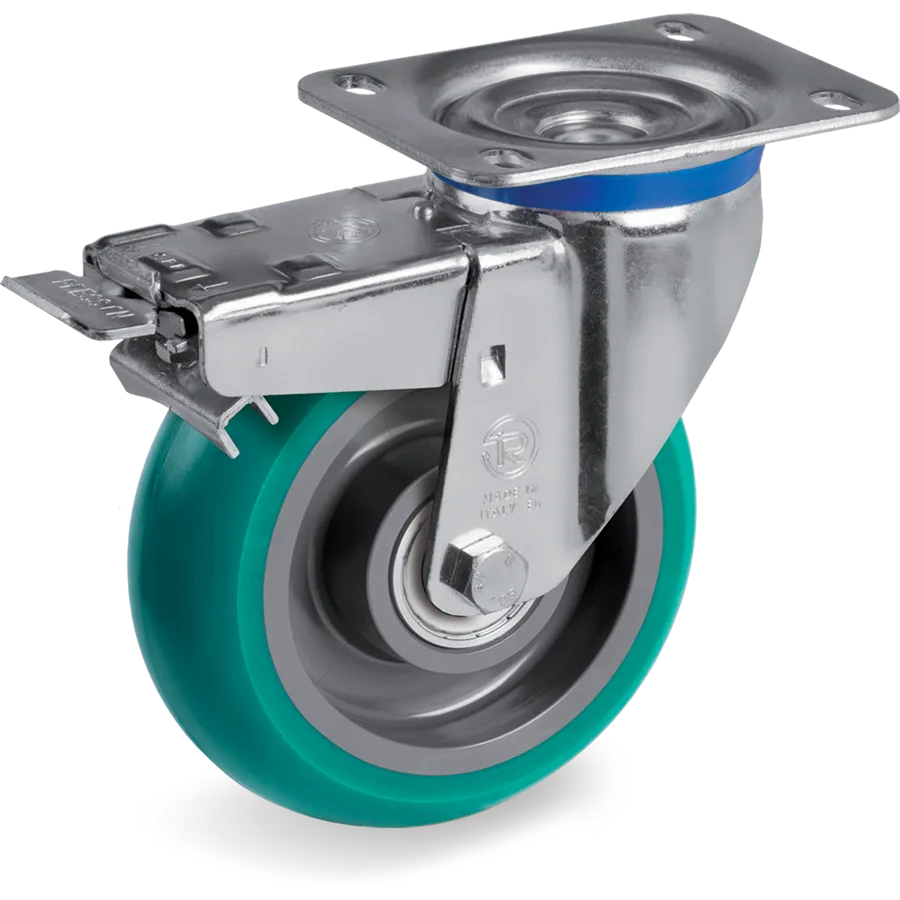

627436Representative image of the familyTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios M con freio
Tellure description: 62NYER 200X50 CC SRP/M+FA R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 627436
- Series
- Tellure Rôta 62NYER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios M con freio
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 627434 | Ø160×50 mm | 400 daN | C/C 2Z | Yes | 62NYER 160X50 CC SRP/M+FA R2.0 |
| 627436 | Ø200×50 mm | 500 daN | C/C 2Z | Yes | This article |
Similar alternatives
- 585566Series 58
627226Series 62NYERTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios P con freio
Load capacity: 500 daN
627236Series 62NYTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano "TR Roll" con núcleo de poliamida 6, soportes giratorios P con freio
Load capacity: 500 daN
627406Series 62ALTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina M freno delantero
Load capacity: 500 daN
