585566Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina M freno delantero
Load capacity: 500 daN

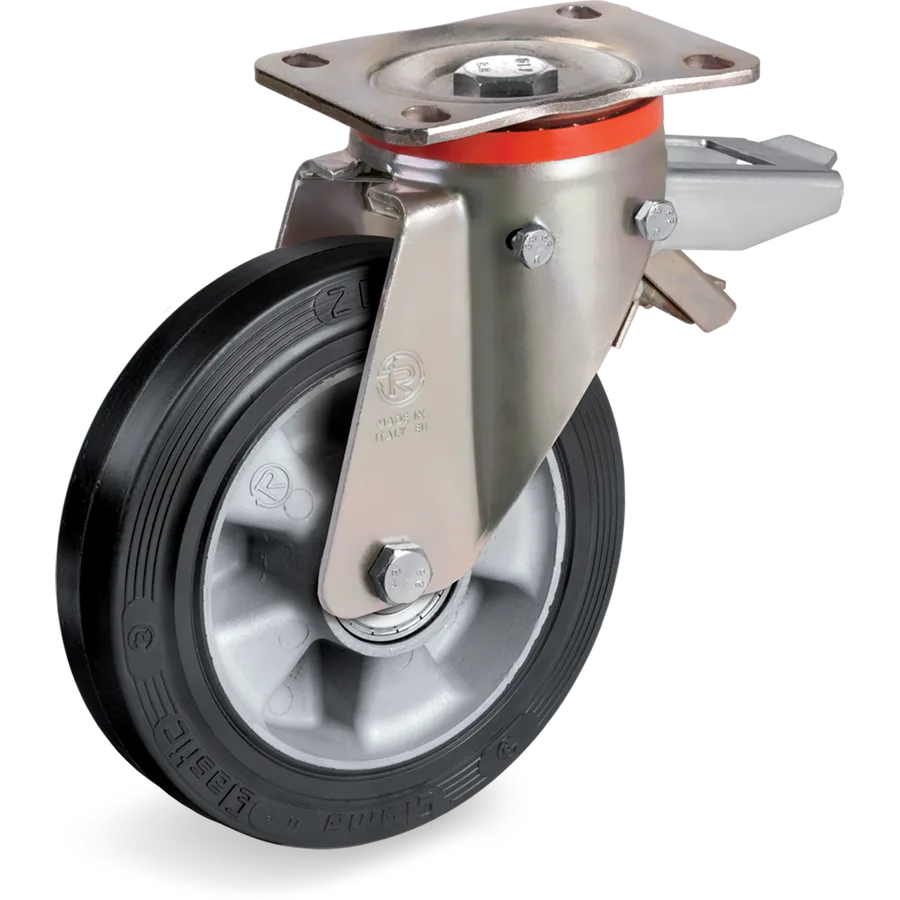

727206Representative image of the familyElastic rubber swivel castor Ø200×50 mm with brake
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte giratorio pletina P con freno registrable
Tellure description: 72AL 200X50 CC SRP/P+FP R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 727206
- Series
- Tellure Rôta 72AL
- Tread
- Elastic rubber
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Load at 6 km/h
- 400 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte giratorio pletina P con freno registrable
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 727213 | Ø125×50 mm | 230 daN | C/C 2Z | Yes | 72AL 125X50 CC SRP/P+FP R2.0 |
| 727204 | Ø160×50 mm | 300 daN | C/C 2Z | Yes | 72AL 160X50 CC SRP/P+FP R2.0 |
| 727205 | Ø180×50 mm | 350 daN | C/C 2Z | Yes | 72AL 180X50 CC SRP/P+FP R2.0 |
| 727206 | Ø200×50 mm | 500 daN | C/C 2Z | Yes | This article |
| 727208 | Ø250×50 mm | 500 daN | C/C 2Z | Yes | 72AL 250X50 CC SRP/P+FP R2.0 |
Similar alternatives
- 585566Series 58
627226Series 62NYERTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios P con freio
Load capacity: 500 daN
627236Series 62NYTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano "TR Roll" con núcleo de poliamida 6, soportes giratorios P con freio
Load capacity: 500 daN
627406Series 62ALTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina M freno delantero
Load capacity: 500 daN
