585566Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 500 daN
727226Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 250 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
- OBrake swing radius
- 126 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

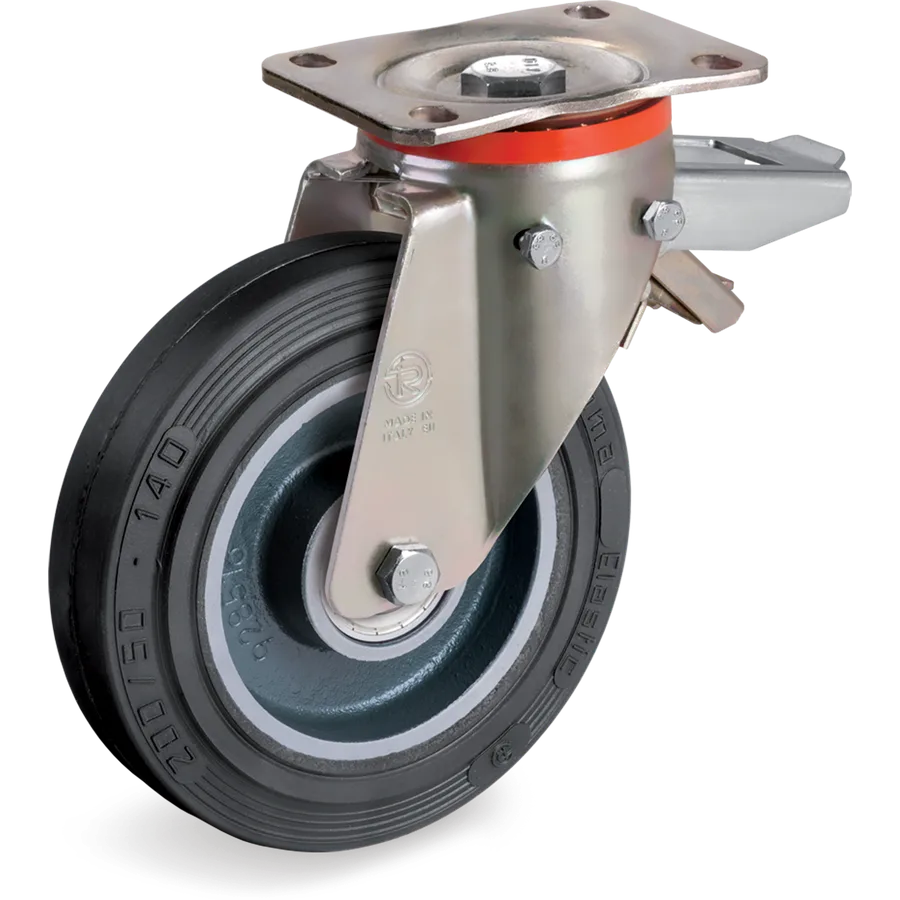

Elastic rubber swivel castor Ø200×50 mm with brake
Sigma Elastic rubber wheels, machined cast iron centre
Tellure description: 72GH 200X50 CC SRP/P+FP R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 727226
- Series
- Tellure Rôta 72GH
- Tread
- Elastic rubber
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Load at 6 km/h
- 400 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 250 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Sigma Elastic rubber wheels, machined cast iron centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 727224 | Ø150×50 mm | 400 daN | C/C 2Z | Yes | 72GH 150X50 CC SRP/P+FP R2.0 |
| 727226 | Ø200×50 mm | 500 daN | C/C 2Z | Yes | This article |
