638772Series 63GHVulkollan® swivel castor Ø125 mm with brake
Vulkollan® wheels, cast iron centre
Load capacity: 1,200 daN
648772Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 210 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
- ESwivel offset
- 50 mm
- OBrake swing radius
- 164 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

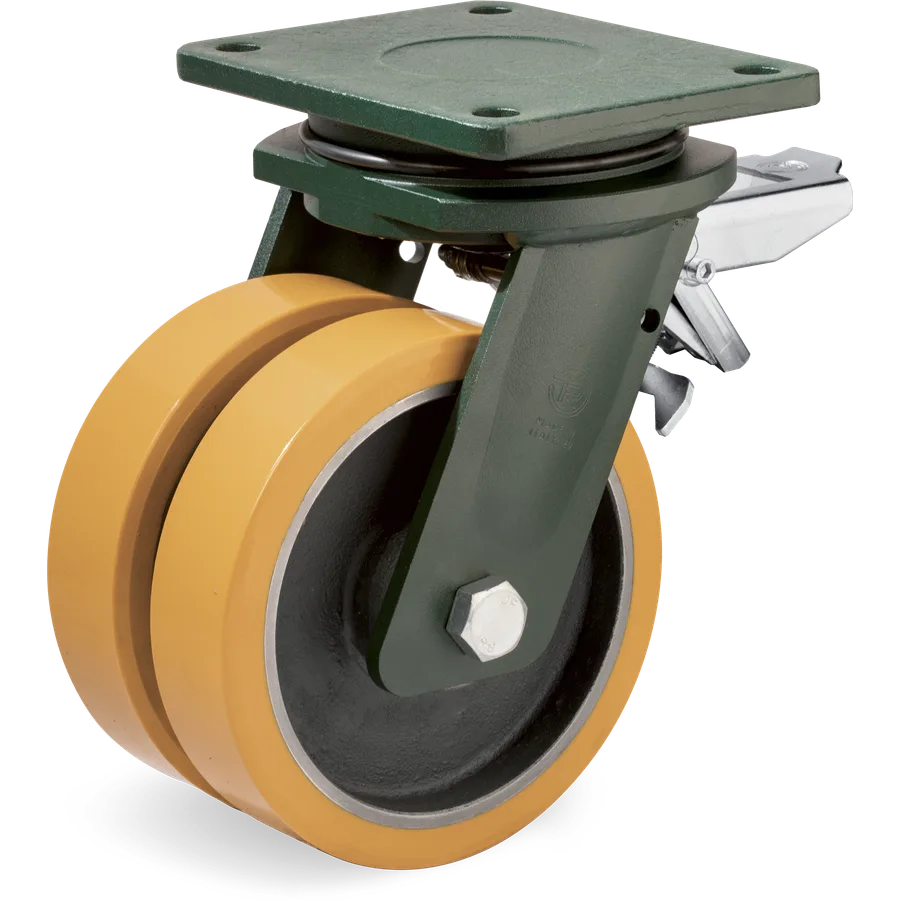

TR polyurethane swivel castor Ø125 mm with brake
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Tellure description: 64 125X50+50 CC SRP/EEGHD+FP R3.0
- Diameter (D)
- Ø 125mm
- Load at 4 km/h
- 1,100daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 648772
- Series
- Tellure Rôta 64
- Tread
- TR polyurethane
- Diameter (D)
- 125 mm
- Load at 4 km/h
- 1,100 daN
- Load at 6 km/h
- 880 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 210 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 648772 | Ø125 mm | 1,100 daN | C/C 2Z | Yes | This article |
| 648774 | Ø150 mm | 1,500 daN | C/C 2Z | Yes | 64 150X50+50 CC SRP/EEGHD+FP R3.0 |
| 648784 | Ø160 mm | 1,500 daN | C/C 2Z | Yes | 64 160X50+50 CC SRP/EEGHD+FP R3.0 |
| 648766 | Ø200 mm | 1,600 daN | C/C 2Z | Yes | 64 200X50+50 CC SRP/EEGHD+FP R3.0 |
| 648776 | Ø200 mm | 2,000 daN | C/C 2Z | Yes | 64 200X50+50 CC SRP/EEGHD+FP R4.0 |
